3C-Passat 2006 Diagnose by Newest VAS 5054A V2.26

This is the case we successfully tested on 3C-Passat 2006 with the latest ODIS 2.26 for VAS 5054A.
Computer requirement:
Windows XP/ Wind 7 System
Steps:
Open Offborad Diagnostic Information System on Desktop
Read Warnings, and then scroll down it and click OK.
Click the last line Starting diagnosis.

Check if the ignition is switched on in the vehicle. Click Continue.

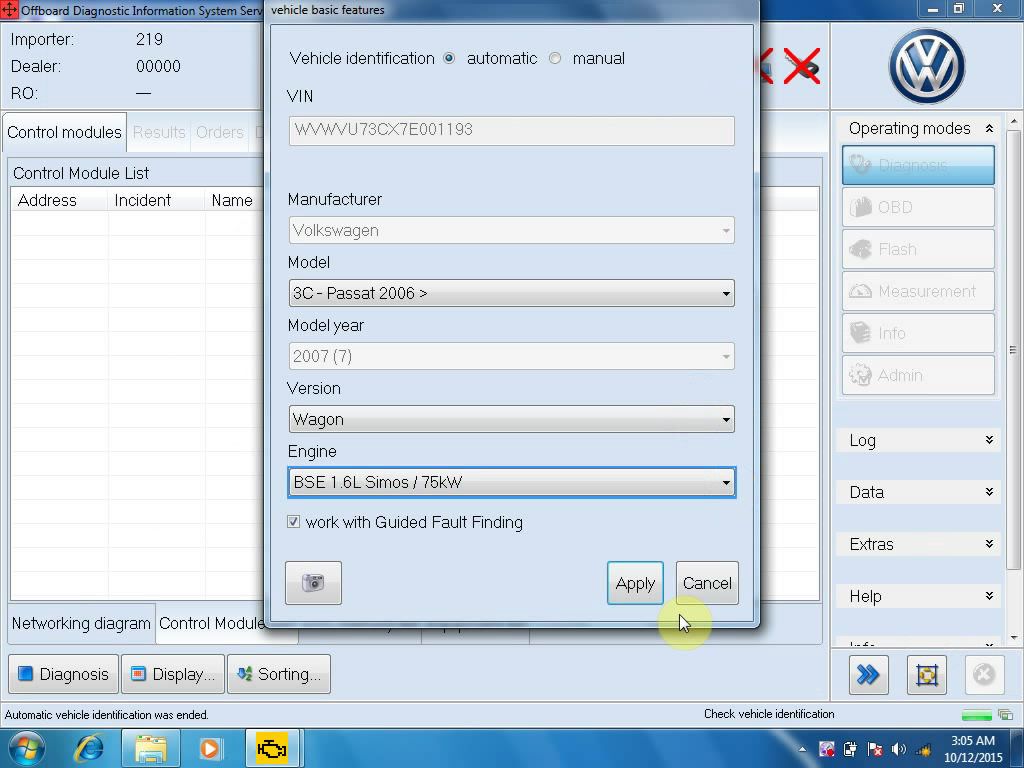

Finish the vehicle basic feature. Click Apply.
Select the first line and click No RO.

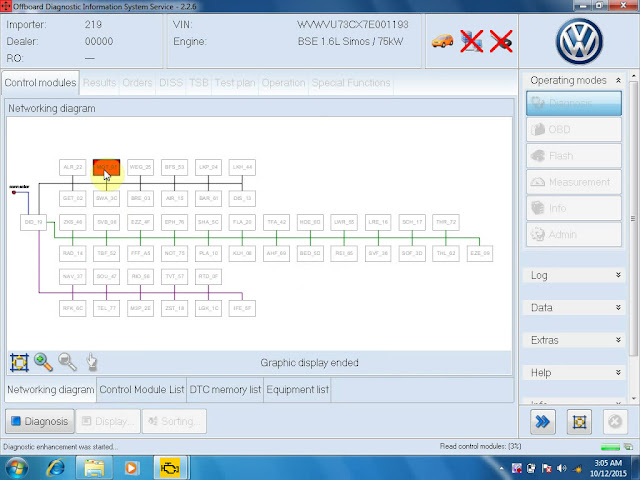

Click Networking diagram, then click the content.
Click continue to enter diagnosis.


Click MOT_O1.

Click Control Module List

Click DTC memory to read, and click the first line”Engine Control Module 1”, then Diagnosis.

Click Yes to cancel diagnostic entrance.
Click the cross button under the operating modes.
Click Yes to end.
Done.
Ps. The latest software ODIS 2.26 only compatible with the following 5054A:
Best Quality VAS 5054A

2015年10月14日星期三

Newest VAG Scanner VAS 5054A ODIS V2.26 Released!!

Hello, all!! Here comes the newest version of VAS 5054A ODIS 2.26. This is a detailed introduction of 5054A 2.26.


What’s new in VAS 5054A V2.26?
- Estimated remaining times are shown for ECU flash operations.
- Diagnostic protocol contains interruptions of GFF sessions, extended measurement values, improved ECU communication view, used diagnostic hardware, connection type of diagnostic hardware, operating system, the hotfix used and submissions of support requests
- The measured value display has been improved.
- Documents in GFF are displayed in separate windows.
- One message box will be shown at the beginning of the test drive mode.
- GFF hotfixes can be integrated during diagnostic sessions.
- Danger messages have been revised.
- Stopping of diagnostic sessions may be interrupted.
- Automatic deletion of autosave diagnostic protocols after successful transmission.
- Selection of PassThru diagnostic hardware has been improved.
- ODIS Service Software update has been stabilized.

Which 5054A device available for ODIS 2.26?
sp33-c(Best Quality VAS 5054A ODIS V2.0 / V2.02)


VAS 5054A V2.26 ODIS for VW Audi Seat Skodasoftware display:





 5054A PCB board:

2015年9月27日星期日

2015 New VAS 5054a Plus ODIS 2.0 with original HQ PCB

2015 VAG diagnostic scanner VAS 5054 Plus with HQ chip and original 5054a case are available in obdtool.co.uk. The new VAS5054a plus share the same software with vas 5054a Bluetooth, but differs in outlook and PCB board.

Difference vas 5054a and 5054 plus:

1) Vas5054a case/outlook



New VAS5054a Plus


2) PCB board differences:

Vas 5054a PCB board
SP33-C Blue PCB



SP33-B/SP33-BO Green PCB




New VAS 5054 Plus PCB board
Green HQ PCB
A-board: SP33-E3/SP33-E4 Bluetooth (OEM 2.0) chip, less stable
B-board: SP33-E/SP33-E1 High Quality Bluetooth (AMB 2300) chip, more stable




Software version:
ODIS 2.0 Multi-Language:
English/Japanese/Portuguese/Romanian/Korean/Dutch/Polish/Turkish/Spanish/French/Italian/Croatian/Danish/German/Swedish/Finnish/Slovenian/Czech/Russian/Greek/Chinese
ODIS 2.02 English/Chinese

Supported Multi-brand Car Models: For VW, AUDI, SKODA, SEAT, Bentley and Lamborghini

Connection: USB or Bluetooth connection

Computer requirement:
Windows System Language: American English
Windows XP (XP2/XP3)
System C:// have to be NTFS format
C:// need to have at least 40GB space for installing ODIS V2.0

 We can also offer free software V19 VAS, if you need, choose software V19 when ordering. V19 VAS Software can support the J1850 PWM protocol.

WIFI Version VXDIAG VCX NANO 5054 ODIS V3.03 Support UDS protocol et le français


2015年9月3日星期四

VAS 5054A Software

Newest ODIS 2.23 Software for VAS 5054A Support Multi-languages Stored in 64G U Disk

Item No. SS156-D

Price:€43.00

Newest ODIS 2.23 Software for VAS 5054A Support Multi-languages Stored in 64G U Disk

Latest software version, ODIS V2.23 works with VAS 5054A

ODIS 2.23 Software language available:
English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian,Danish, German, Swedish, Finnish, Slovenian, Czech,
Russian, Greek, Chinese.
ODIS 2.23 Software Support models:
Volkswagen, Dynamic, Neutral, Seat, Audi, Volkswagen Commerical Vehicles, Skoda, Lamborghini and Bentley


Tips on using VAS 5054 ODIS V2.23:
When you install license, please choose the license for the software you are going to install

ODIS 2.23 Software New functions:
– Estimated remaining times are shown for ECU flash operations.
– Diagnostic protocol contains interruptions of GFF sessions, extended measurement values, improved ECU communication view,
used diagnostic hardware, connection type of diagnostic hardware, operating system, the hotfix used and submissions of support requests
– The measured value display has been improved.
– Documents in GFF are displayed in separate windows.
– One message box will be shown at the beginning of the test drive mode.
– GFF hotfixes can be integrated during diagnostic sessions.
– Danger messages have been revised.
– Stopping of diagnostic sessions may be interrupted.
– Automatic deletion of autosave diagnostic protocols after successful transmission.
– Selection of PassThru diagnostic hardware has been improved.
– ODIS Service Software update has been stabilized.



VAS 5054A Software for Import VW Audi ODIS2.23/Faw-VW's OSIS 2.23 /Shanghai VW Skoda OSIS 2.22

Item No. SS156

Price:€19.00

Import Volkswagen Audi ODIS2.23

Faw-VW's OSIS 2.23

Shanghai Volkswagen, Skoda OSIS 2.22

Notice:
1. This version needs activation, We provide free activation for one time
2. Have different version to choose
3. We offer one time free activate,from 2cd time,each time you need pay us 2usd.

Import Volkswagen Audi ODIS2.23

Faw-VW's OSIS 2.23
Shanghai Volkswagen, Skoda OSIS 2.22

New functions
- Estimated remaining times are shown for ECU flash operations.
- Diagnostic protocol contains interruptions of GFF sessions, extended measurement values, improved ECU communication view, used diagnostic hardware, connection type of diagnostic hardware, operating system, the hotfix used and submissions of support requests
- The measured value display has been improved.
- Documents in GFF are displayed in separate windows.
- One message box will be shown at the beginning of the test drive mode.
- GFF hotfixes can be integrated during diagnostic sessions.
- Danger messages have been revised.
- Stopping of diagnostic sessions may be interrupted.
- Automatic deletion of autosave diagnostic protocols after successful transmission.
- Selection of PassThru diagnostic hardware has been improved.
- ODIS Service Software update has been stabilized.
Package including:
1pc x 3DVD



VAS 5054A V2.0

Best Price VAS 5054A V2.0 Bluetooth Scanner for VW/AUDI/SKODA/SEAT With OKI Chip Stable Version

Item No. SP33-D

History: 4 sold

Price: €40.99

VAS 5054A V2.0 Highlights:
1. Language: English
2. Software Version: ODIS V2.0

3. Update: via CD
4. With OKI Chip, support PWM Protocol

5. Support Bluetooth connection, Bluetooth distance: 2-5Meter
6. Supported Car Models: VW, Audi, Skoda and Seat(1996-2013); Bently and Lamborghini around year 2011

7. Cheapest Price


Tips on using VAS 5054A:
1. Bluetooth password: 084301625
2. If you need Bently and Lamborghini software CD, please leave message in your order
3. Difference among VAS 5054A

VAS 5054A Software Installation Computer Windows System Requirements:
Windows System Language: American English
Windows XP(xp2/xp3)
System C:// have to be NTFS format
C:// need to have at least 10GB space for installing VAS5054A
VAS 5054A Bluetooth version
The VAS 5054A is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.
The integrated Bluetooth interface connects the vehicle with a notebook, desktop PC or test system.
No cables are needed for vehicle diagnostics using the VAS 5054A.
The range of the wireless Bluetooth connection is 5 to 10 meters,depending on the environment and the type of Bluetooth adapter used on the PC side.
The Serial Port Profile (SPP) is used for data transfer via Bluetooth. Different Bluetooth security levels are supported.
VAS 5054A Specification:
The vehicle protocols are handled directly in the VAS 5054A.
This ensures fast response times and a reliable real-time behavior independently of the PC operating system. Every time a connection is established, the VAS 5054A software is identified with the version installed on the application PC. The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.
The diagnostic application and the associated Diagnostic Base System are installed on the application PC.
The diagnostic base system can access the VAS 5054A via Bluetooth or USB.
Access via Bluetooth: After a connection to the VAS 5054A has been set up, the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile). The Diagnostic Base System uses this COM port to communicate with the VAS 5054A.You need to specify this port when you install the diagnostic application.
Access via USB: You can also connect the VAS 5054A to the application PC by using the supplied USB cable. Windows detects the VAS 5054A through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application. Setup of the VAS 5054A is then complete and the device is ready for use by the diagnostic application.

VAS 5054A Supported Protocol:
K line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO 11898-3)
J1850 (SAE J1850)
Cheapest VAS 5054A PCB Board:


OR Get This:

Best Quality VAS 5054A ODIS V2.0 / V2.02 Bluetooth Diagnostic Tool With OKI Chip UDS Protocol for VW Audi Skoda Seat:

VAS 5054A Package list:
1pc × VAS 5054A Main Unit
1pc x USB Cable
1pc x USB Bluetooth Adapter
1set × CD Software
1pc x Carrying Case


VAS 5054A ODIS V2.02

VAS 5054A V2.02 VAG Diagnostic Tool with Bluetooth and OKI Chip Support PWM Protocol

Item No. SP33-BO

History: 150 sold

Price:€64.00

VAS 5054A V2.02 highlights:
1. Support Multi-Languages:
English/Japanese/Portuguese/Romanian/Korean/Dutch/Polish/Turkish/Spanish/French/Italian/Croatian/Danish/German/Swedish/Finnish/Slovenian/
Czech/Russian/Greek/Chinese

2. Software Version: ODIS V2.02/ODIS V2.0
3. Update: via CD

4. Bluetooth Version, Bluetooth Connection Password: 082145725

5. With OKI Chip inside, support PWM Protocol

6. Car models: VW, Audi, Seat, Skoda, Bentley and Lamborghini

5054A VAG 2.0V5054A VAG 2.02V
LanguageMulti-LanguageEnglish and Chinese Only
Car listVW AUDI SKODA SEATVW AUDI SKODA SEAT
BluetoothYESYES


Tips on using VAS 5054A:
1. ODIS V2.02 available Now, but there is only Chinese and English, if you need multi languages, choose ODIS V2.0
2. If you need the software for Lamborghini, Bentley, please leave us information when order.
3. Difference among VAS 5054A

VAS 5054A Description
VAS 5054A reader is a universal diagnostic interface for the vehicles of the Volkswagen Group till 2012.
The integrated Bluetooth interface connects the vehicle with a notebook,desktop PC or test system.
The range of the wireless Bluetooth connection is 2 to 5 meters,depending on the environment and the type of Bluetooth adapter used on the PC side.
The Serial Port Profile (SPP) is used for data transfer via Bluetooth. Different Bluetooth security levels are supported.
This ensures fast response times and a reliable real-time behavior independently of the PC operating system. Every time a connection is established, the VAS 5054A software is identified with the version installed on the application PC. The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.
The diagnostic application and the associated Diagnostic Base System are installed on the application PC.
The diagnostic base system can access the VAS 5054A via Bluetooth or USB.
Access via Bluetooth: After a connection to the VAS 5054A has been set up, the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile).The Diagnostic Base System uses this COM port to communicate with the VAS 5054A.You need to specify this port when you install the diagnostic application.
Access via USB: You can also connect the VAS 5054A to the application PC by using the supplied USB cable. Windows detects the VAS 5054A through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application. Setup of the VAS 5054A is then complete and the device is ready for use by the diagnostic application.

The following vehicle bus systems are supported
K line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO 11898-3)
J1850 (SAE J1850)

VAS 5054A scanner System RequirementsWindows System Language:English
Windows XP(xp2/xp3)
System C:// have to be NTFS format
C:// need to have at least 10GB space for installing VAS5054A

Package list
1× VAS 5054A main unit
1×CD(Basis-VASPS English)
1×CD(Audi-English)




Customer share:

Q:Dear sellers,can you help me?No connection now,unit seems ok,light is turn on,what can I do?

A:dear sir,you have to connect with car.once connect,it will ask you to choose a car list,then you can use it.

Q:What's your bluetooth password?
A:082145725

OR Get this:
Best Quality VAS 5054A ODIS V2.0 / V2.02 Bluetooth Diagnostic Tool With OKI Chip UDS Protocol for VW Audi Skoda Seat


VAS 5054A ( Best Quality )

Best Quality VAS 5054A ODIS V2.0 / V2.02 Bluetooth Diagnostic Tool With OKI Chip UDS Protocol for VW Audi Skoda Seat:

Item No. SP33-C

History: 241 sold

Price:€88.00

VAS 5054A diagnostic tool Highlights:
1. Multi-languages:
English/Japanese/Portuguese/Romanian/Korean/Dutch/Polish/Turkish/Spanish/French/Italian/Croatian/Danish/German/Swedish/Finnish/Slovenian/
Czech/Russian/Greek/Chinese

2. Update via CD

3. With OKI Chip. Support UDS Protocol
4. Supported Car Models: VW, AUDI, SKODA, SEAT, Bently and Lamborghini
    If you need software for Bently and Lamborghini, please leave message in order

5. VAS 5054A Bluetooth Version, Password: 082145725


Tips on using VAS 5054A ODIS Interface:
1. VAS 5054A hardware support online coding, but our software does not support. Need get software from VW dealer for online coding function.
2. ODIS V2.02 Available Now, but there is only Chinese and English for V2.02 version, if you need multi languages, choose ODIS V2.0
3. If you need the software for Lamborghini, Bentley, please leave us information when order
4. Difference among VAS 5054A ODIS V2.0 and ODIS V2.02 software:
5054A VAG 2.0V5054A VAG 2.02V
LanguageMulti-LanguageEnglish and Chinese Only
Car listVW AUDI SKODA SEATVW AUDI SKODA SEAT
BluetoothYESYES
5. VAS 5054A ODIS Bluetooth Diagnostic Tool With OKI Chip
6. Difference among VAS 5054A
7.How to use The VAS 5054A ODIS V2.0

VAS 5054A V2.23:

VAS 5054A Software for Import VW Audi ODIS 2.23
VAS 5054A V2.02 System Requirements
Windows System Language: American English
Windows XP(xp2/xp3)
System C:// have to be NTFS format
C:// need to have at least 10GB space for installing VAS5054A


VAG 5054A Interface Diagnostic Tool Description (VAS 5054A introduction)

Bluetooth version

VAS 5054a is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.
The integrated Bluetooth interface connects the vehicle with a notebook,desktop PC or test system.No cables are needed for vehicle diagnostics using the VAS 5054A VAG diagnostic tool.

The range of the wireless Bluetooth connection is 2 to 5 meters,depending on the environment and the type of Bluetooth adapter used on the PC side.
The Serial Port Profile (SPP) is used for data transfer via Bluetooth.Different Bluetooth security levels are supported.

Specification
The vehicle protocols are handled directly in the VAS 5054A ODIS Bluetooth.

This ensures fast response times and a reliable real-time behavior independently of the PC operating system. Every time a connection is established, the VAS 5054A interface software is identified with the version installed on the application PC. The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.

The diagnostic application and the associated Diagnostic Base System are installed on the application PC.
The diagnostic base system can access the VAS 5054A OKI ODIS via Bluetooth or USB.

Access via Bluetooth: After a connection to the VAG VAS 5054A Diagnostic Tool  has been set up,the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile).The Diagnostic Base System uses this COM port to communicate with the VAS 5054A ODIS VW AUDI diagnostic tool.You need to specify this port when you install the diagnostic application.

Access via USB: You can also connect the VAS 5054A odis to the application PC by using the supplied USB cable. Windows detects the VAS 5054A through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application. Setup of the VAS 5054A is then complete and the device is ready for use by the diagnostic application.


VAS 5054A VAG diagnostic tool main unit chips

Vehicle bus systems are supported


K line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO 11898-3)
J1850 (SAE J1850)
Package list:

1pc x VAS 5054A Main unit
1pc x USB Cable
1pc x USB Bluetooth Adapter
2pcs x CD Software
1pc x Carry Case


About install Java of interface VAS 5054a Bluetooth

when you want to install VAS 5054a,you need install a Java software first.

1 Open www.sun.com, you will see



Move your mouse to Download,it will appear "JAVA for your computer",download it.

2. Check the install video in CD,do it as follow.

Q:What's your bluetooth password?
A:082145725

3. Q: What is the range of bluetooth?
    A: 2-5 Meters. There should not be any influence.

4. Q: Can i use this VAS 5054A OKI to disable some functions? Like immobilizer?
    A: No. This one has the same method as the original. It can be used to fix the broken system, not disable.

5.  Q:  VAS 5054A interface diagnostic tool work with Skoda Octavia 2004?
     A: Yes, it does

6.  Q: I cannot open the software, it only gives me this prompt: "5054A license invalid, need to buy license", what's the problem?
       A: You do not active the software. Follow the video to install the software and active it.



2015年8月25日星期二

How to use The VAS 5054A ODIS V2.0

1.https://www.youtube.com/watch?v=i8ML_q8eYw4&context=C45ff469ADvjVQa1PpcFP-YPDOHB85F3qGu1E4g0TPX4NUdRb25OM= (VIDEO)

2.vas 5054a manual

3.vas 5054a bluetooth setup

4.VAS 5054a Software Free Download

Best Quality VAS 5054A ODIS V2.0 / V2.02 Bluetooth Diagnostic Tool With OKI Chip UDS Protocol for VW Audi Skoda Seat:




This is from obd tool website technical support: How to use The VAS 5054A ODIS V2.0

VAS 5054A introduction

VAS 5054A odis v2.0 Brief introduction

It is Germany's Volkswagen and Audi for their special service station designated essential car detector, in the world not only the Volkswagen, Audi, Volkswagen, Skoda Czech Republic, Spain Volkswagen Seat, or domestic Shanghai Volkswagen, FAW-Volkswagen, Audi and other services stations are used equipment. Its function is to any other diagnostic instrument can not be replaced.

VAS 5054A is a universal diagnostic interface line, mainly for Volkswagen Group vehicles and automotive OBD systems from other functions.






VAS 5054A Function introduction

The integrated Bluetooth interface connects the vehicle to a laptop, desktop PC or test system. When using the VAS 5054A diagnostic vehicle, you do not need to use other cable to connect it!

Wireless connection specific distance depends on the environment and on the computer's Bluetooth adapter. Serial Port (SPP) is used for data transfer via Bluetooth. Bluetooth can support different security levels.

Communication protocols can support the following vehicles:

... K-line (ISO9141-2)
... High-speed CAN (IS0 11898-2)
... Low-speed CAN (ISO 11898-3)
... J1850 (SAE J1850)

VAS 5054A Instruction manual:

Which can be processed directly in the VAS 5054A vehicle agreement. This ensures fast response and reliable real-time performance, instead of relying on computer systems. Every time the connection is established, VAS 5054A software applications are installed with the version of the program on a computer synchronized. Thus, when a new version of the software installed on the computer application, VAS 5054A can automatically adapt to any new features.

Diagnostic application and the associated Diagnostic Base System installed in the computer application, diagnostic base system can access VAS 5054A via Bluetooth or USB.

Access via Bluetooth:
When a connection is established with the VAS 5054A, the Bluetooth software provides a virtual serial port, diagnostic base system via this serial port to connect to the VAS 5054A. When you install the diagnostic application, you need to make special note of the serial port.

Access via USB:
Via USB cable to connect the VAS 5054A to the application PC serial port via a linker detects VAS 5054A, and you install the diagnostic application is automatically installed drive.

This is from obd tool website technical support:

2015年8月24日星期一

VAS 5054a Software Free Download


Hi dear customer

Have a nice day

If you have buy VAS 5054A VAG Diagnostic Tool from us before, you can download VAS 5054A ODIS V2.0 Software to update your old VAS 5054A Interface

You just need uninstall your old VAS 5054A Software, then re-install the new ODIS software again

If any problem, please feel free to contact us



2015年8月19日星期三

All about vas 5054a interface diagnostic tool

1.vas 5054a 2.2.3 (VAS 5054a 2.2.3 Software)

2.vas 5054a manual

3.vas 5054a bluetooth setup

4.VAS 5054a Software Free Download

5.VAS 5054A introduction

6.How to use The VAS 5054A ODIS V2.0

Best Quality VAS 5054A ODIS V2.0 / V2.02 Bluetooth Diagnostic Tool With OKI Chip UDS Protocol for VW Audi Skoda Seat:





vas 5054a manual

Tips on using VAS 5054A v2.0 Interface:
1. VAS 5054A hardware support online coding, but our software does not support. Need get software from VW dealer for online coding function.
2. ODIS V2.02 Available Now, but there is only Chinese and English for V2.02 version, if you need multi languages, choose ODIS V2.0
3. If you need the software for Lamborghini, Bentley, please leave us information when order
4. Difference among ODIS V2.0 and ODIS V2.02 software:
5054A VAG 2.0V5054A VAG 2.02V
LanguageMulti-LanguageEnglish and Chinese Only
Car listVW AUDI SKODA SEATVW AUDI SKODA SEAT
BluetoothYESYES
5. VAS 5054A ODIS V2.02 Bluetooth Diagnostic Tool With OKI Chip
6. Difference among VAS 5054A
Vas 5054A V2.02 System Requirements
Windows System Language: American English
Windows XP(xp2/xp3)
System C:// have to be NTFS format
C:// need to have at least 10GB space for installing VAS5054A

VAS 5054a 2.2.3 Software

VAS 5054A 2.23 Software for Import VW Audi ODIS2.23/Faw-VW's OSIS 2.23 /Shanghai VW Skoda OSIS 2.22:

New functions:
- Estimated remaining times are shown for ECU flash operations.
- Diagnostic protocol contains interruptions of GFF sessions, extended measurement values, improved ECU communication view, used diagnostic hardware, connection type of diagnostic hardware, operating system, the hotfix used and submissions of support requests- The measured value display has been improved.
- Documents in GFF are displayed in separate windows.
- One message box will be shown at the beginning of the test drive mode.- GFF hotfixes can be integrated during diagnostic sessions.
- Danger messages have been revised.- Stopping of diagnostic sessions may be interrupted.
- Automatic deletion of autosave diagnostic protocols after successful transmission.
- Selection of PassThru diagnostic hardware has been improved.- ODIS Service Software update has been stabilized.

http://www.obd2france.com/wholesale/vxdiag-vcx-nano-5054-wifi-version-vas-5054a.html

2015年7月28日星期二

Best quality Bluetooth VAS 5054A ODIS interface PCB board

There are several Bluetooth VAS 5054A ODIS V2.0/V2.02 diagnostic interface for VAG Group VW, Audi, Skoda, Seat, Bentley and Lamborghini etc. The quality varies from one to the other. OBDToolShop.co.uk here lists the best quality VAS 5054 interface by displaying the hardware PCB board.
Best quality VAS5054a diagnostic scanner PCB board display: (Item No: SP33-C, SP33-BO full chips versions and SP33-B without OKI chip versions)
NOTE:
VAS 5054A full chips version includes all chips like the original one support all protocol of VW group (include UDS protocol). It is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.
VAS 5054a Bluetooth without OKI chip version does not support PWM protocol and UDS protocol.
VAS 5054 hardware PCB board (with or without OKI chip)
