VAG diagnostic tool compare list: VAS 5054A VS VAG PRO 5.5.1

If you are looking for a VAG diagnostic tool and still have no idea before so many products, here is a compare list between VAS 5054A and VAG PRO 5.5.1 from eobdtool.co.uk engineers. It will advise you which one is better to choose.

VAS 5054A VS VAG PRO 5.5.1, get which one?

First, these two are both PC-based scanners for VAG Group vehicles, both can run on Windows7 or Windows XP.

Next, VAS 5054A OKI Chip and VAG PRO VCP 5.5.1 separate feature you should know:

1. VAS 5054A OKI Chip 3.0.3 €88/$96

It is OEM;

With OKI chip;

Support UDS protocol;

Support Bluetooth connection;

Support diagnose VW, Audi, Seat, Skoda from 1996-2013 and Bentley and Lamborghini around year 2011.

2. VAG PRO VCP 5.5.1 €45/$49

It is clone but tested work as the original;

Support CAN BUS+UDS+K-line;

Support diagnose VW, Audi, Seat, Skoda from 1990-2015;

Support VAG coding or programming (NO need engineer codes!);

Then, we discuss about the difference between VAS 5054A VS VAG PRO VCP 5.5.1

1. vas 5054a francais is OEM, so it fully supports every VAG model, but it’s slow and you need online connection for being able to do a lot of things. Coding must be online. (Need get software from VW dealer for online coding function) And ODIS 3.0.3 is best for flashing. But kind of slow when diagnose.
2. VAG PRO VCP 5.5.1 reads DTC fast, every feature is done offline, and work very well with Volkswagen Group MQB platform. It can do offline coding and programming as the original without need of engineer codes. VAG PRO is best for parameter and quick EEPROM read; It runs fast than VAS 5054A and more stable when directly connect to VAG ECU.
3. VAS 5054A support update online, but VAG PRO 5.5.1 does not support.

So answer on the bottom to “Which VAG diagnostic tool to choose?” is VAG PRO 5.5.1 is better and cheaper than VAS 5054A, but 5054A is also not bad. Both are advised by engineers and worth to choose!

How to use VAS 5054A ODIS 3.0.3 for Audi A6 2012 diagnosis

VAS 5054A ODIS 3.0.3 test OK on Audi A62012

This is a test result of VAS 5054A ODIS 3.0.3 diagnosis on 2012 Audi a6 sedan.

diagnostics: VAS 5054A scan tool + ODIS-S v3.0.3

model: Audi A6 (c7) 2012

engine: CDNB 2.01 TFSI / 132 kw

check connection of 5054a scanner and the laptop and the car

run ODIS service

ODIS recognize the car and ignition without any problem

then click on Start diagnosis

enter vehicle basic information

manufaturer: Audi

model: Audi A6 2011>

model year: 2012 (C)

version: sedan

engine: CDNB 2.01 TFSI / 132 kw

go to Network connection

select MOT_01-> Identify control module

engine control module 1

go to Control module list

UDS protocol is supported by VAS 5054A

select transmission control module-> Identify control module

select Door electronic driver side-> Identify control module

find a faulty code, then select Vehicle OBD to perform OBD functions

select Complete DTC memory

control modules with DTC entries

select system 42 line: Door electronic driver side

this is the incident code of the door electronic driver side

erase DTC memory

then VAS 5054A diagnosis on AUDI A6 complete.

€45 VAG PRO 5.5.1 full kit do coding programing without engineer codes

The newly-released clone VAG PRO full kit with VPC v5.5.1 at eobdtool.co.uk – eobdtool today is verified to work ok (diagnosis, coding & programming) as the original does, said engineers and users.

Q; Is the VAG PRO a full version?

A: yes, it’s VAG full kit.

Q: Does clone vag supports coding and programming?

A: definitely yes. The VAG PRO at eobdtool can do coding and programming as the original.

Moreover, the clone doesn’t need engineer codes for coding or programming, while the genuine needs it.

Q: Does it support UDS protocol?

A: yes. It supports CAN BUS, UDS, K-line.

Source: http://www.eobdtool.co.uk/wholesale/vag-can-pro.html

Firmware: clone version VAG PRO

Software: version 5.5.1

VAG PRO 5.5.1 update news:

Support for new addresses entered in the MLB-Evo platform

Update database-ODX (support for all models 2015)

How to users think of VAG PRO diagnosis?

** Audi A4 8E B6 owner says:

This model has a can-bus (TP1.6), but it is not connected to the diagnostic socket. The car is fully diagnosed on the K-line (VCP required interface + K). Used protocols KWP2000 and KWP1281 it.

** Audi A4 8E, B7 owner says:

This model has a CAN BUS TP2.0, but the diagnostic socket is only connected to the so-called CAN-Antrieb, i.e. Engine, transmission, airbags, ABS, Quattro drive.

In addition, a standard K-line. In other words, VCP fully supports the diagnosis B7 models, but only in the CAN-Antrieb. Other controllers are available through the K-Line and KWP2000 KWP1281 protocols.

** Mike talks about differences between VAG PRO (VCP) and VCDS:

I have both, and can say with absolute certainty that VCP does NOT replace VCDS in any way.

VAG Commander is a tool used to retrieve and modify information from the program area of the ECU.

VCDS will give full access to all control modules in the car for diagnostic purposes. It will not allow you to modify the program memory of any ECU. Having said that, VCDS does allow you to "code" a module - selecting different factory installed options. All diagnostic procedures performed by the factory tool at the dealer can be performed using the VCDS tool. In fact, the tool design is made to conform with the same terminology used on the factory tool so that factory repair information can be used with the VCDS tool.

s on your PC. VCDS only supports the functions built into the modules that were intended by the designers for diagnosing problems and effecting repair of those problems.

What functions has been TESTED OK by eobdtool engineers?

* Unique features OCLF service procedures (One-Click-Function);

* inexpensive flasher for VAG;

* inexpensive flasher with support UDS controllers;

* ESP MK60EC1 decision coding blocks;

* a tool for a complete diagnosis MQB platform (Golf VII, Octavia III) Support to 01.2013;

* ZDC-loading containers in the electronic components;

* Unlock video in motion (VIM) on the MQB platform (Discover Pro and MMI-MQB);

* Coding controllers for PR-codes;

* "Login finder" - allows you to scan and logins in the CAN controllers UDS;

* Support for the new Polo in 2014 Facelift;

* Support for the new Passat B8;

* Full support of Audi TT-3 on the platform of the IBC;

* Full support for Skoda Fabia III

What models can be supported?

The VCP Scanner support CAN BUS + UDS + K-Line for diagnostics and programming of electronic components used in vehicles Volkswagen, Audi, Seat, Skoda, made from 1990 to 2015.

1. Audi

A2 2009-

A3 8P 2003-

A3 - platform MQB-

A4 model 8E wariant B7 (Engine, transmission, airbags, ABS, park) 2005-

A4 model 8K wariant B8 (UDS + TP2.0) 2008-

A5 model 8K (UDS) 2007-

A6 model 4F 2004-

A8 model 4E 2003-

Q3 (UDS) 2010-

Q5 (UDS) 2008-

Q7 (TP2.0 + UDS) 2006-

S5 model 8K

(R)S6 model 4F

R8 (UDS)

TT model 8J 2007-

2. Mercedes

Sprinter (VW Crafter) - - Only the engine and immobilizer

3. Seat

Altea

Leon MQB 2013-

Leon model 1P 2005-

Toledo model 5P 2004-

Exeo 2008- (Engine, transmission, airbags, ABS, park)

4. Skoda

octavia model 1Z 2004 -

octavia platform MQB -

superb II B6 2008-

fabia model 5J 2007-

yeti 2009-

5. Volkswagen

Crafter (immobilizer, engine)

Caddy model 2K 2005-

Eos

Golf V model 1K

Golf VI model 5K

Golf VII platform MQB

Golf Plus

Jetta II model 1K

Transporter / Multivan (Only after the CAN-BUS drive for storing data)

Multivan/Transporter GP model 7E (UDS) 2009-

Passat B6 model 3C 2005-

Passat CC-

Phaeton GP 2007-

Polo model 6R 2009-

Polo FL MQB 2014-

Scirocco III-

Touran-

Tiguan-

Touareg GP 2007-

Touareg NF 2010

VAG PRO VPC 5.5.1 vs VAG-COM VCDS:

VCDS and VAG PRO + K are very close level features (there is also a small resemblance in the software interface of the two).

VCDS is the best known and most used of the two, so you more easily find topics on speaking forums VCDS that VAG PRO + K.

diagnostic Level, VCDS exceeds VAG PRO + K, even if it progresses from version to version.

coding level, some encodings are sometimes not possible with VCDS then they are with VAG PRO + K (RLFS coding, coding ESP, also VIM coding which is a "specialty" of VAGPRO + K).
more anecdotally, sometimes with some encodings require VCDS resume it several times before it is taken into account by the vehicle, while with VAG PRO + K it works 1 shot.

the VAG + K PRO software has a list of predefined functions, kinds of shortcuts to quickly do some actions without knowing the value of adaptation or corresponding coding.
It also has a backup feature and flashing the entire contents of a computer, that does not have the VCDS software.

prices level, it's a little more complicated for VAG PRO + K.

in official, there is a price to pay (€ 306.27) for the purchase of the interface (this price includes free updates for 1 year), there is a price to pay (50 € per year) for 1 year annual subscription to updates and there are also 3 price to pay to activate each of the three following additional features:

flash EDC-16 (65 €),

ESP coding (95 €),

access to all files for VIM coding on various VAG vehicles (105 €).

(it is rare, but the VAG + K PRO interface is also in clone / unofficial 3 with additional features enabled, clone VAG PRO for nearly 45€ from http://www.eobdtool.co.uk/wholesale/vag-can-pro.html .)

This is from EOBDTOOL website technical support: €45 VAG PRO 5.5.1 full kit do coding programing without engineer codes

VAS 5054A & UPA program VIN of VW10 airbag 5N0 pw NEA

Something about VW10 airbag 5N0 pw NEA VIN number setup (with VAS 5054A with ODIS 2.2.7 & UPA USB programmer), like wiring connection, access authorization, reading PIN and programming VIN number...

Disclaimer: TRY ON YOUR OWN RISK

Part 1 - devices and wiring connection

VW10 airbag & VAS5054A:

VAS 5054A and VW10 airbag wiring connection

Label 1:

Label 2:

VW10 airbag connector:

VW10 5N0 pin out connector

Wires pin connector:

UPA adapter vs eeprom programmer:

10 pin from UPA adapter goes to eeprom connector programmer right pin

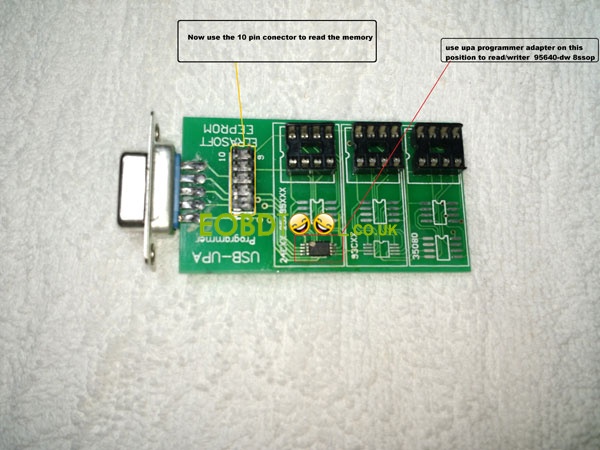

Upa adapter:

Use the 10 pin connector (marked with yellow) to read the memory

Use upa programmer adapter on the position (marked with red) to read/write 99640-dw 8ss0p

10 pin connector:

Eeprom programmer pin out:

Part 2 - setup on VAS 5054A software ODIS

Access authorization:

Doing this event in ODIS 2.27 interface for authorization editing vin on the control module

Access authorization login”

Select automatic access authorization

Adapt airbag software:

Select adapt airbag software

Coding after authorization:

New codes here

Done!:

The connect vehicle identification number cannot be read from the engine control module.

Please enter vin number...

Fault free:

After you programming VIN number, you will see no more error codes here

On table:

There is only one control because of only the airbag control module on the table test

Vin 2:

Done

Go to read fault codes and see no more 0003 control module defective

Vin 3:

Click Done/Continue to go on

Vin 4:

Control module data is collecting..

Vin appear:

The connect vehicle identification number cannot be read from the engine control module.

Please enter vin number...

Vin input:

Input the vin number here

Attachment:

VIN number.txt

vw tiguan airbag 5no vw10 TRW TS6 file before & after programmed.rar
